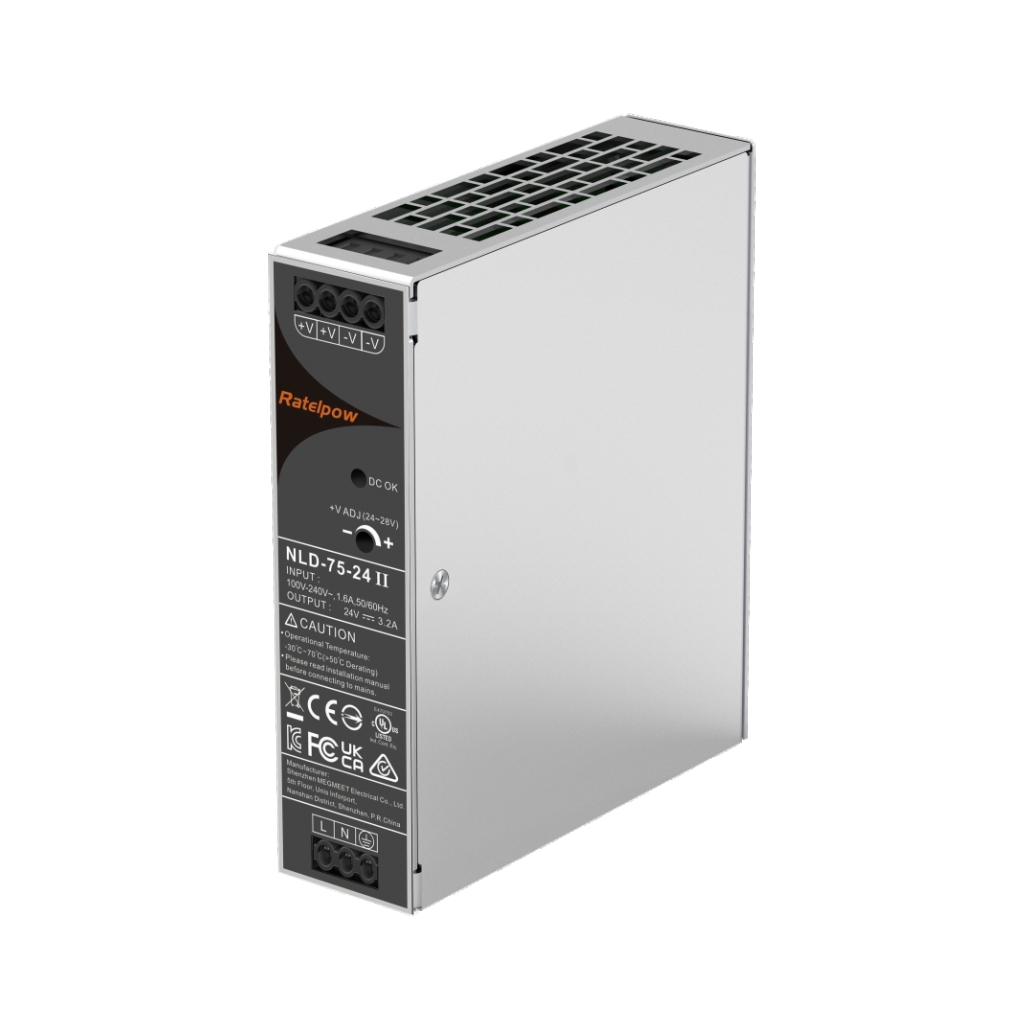

MEGMEET Din-rail Power Supply: NLD-75-12/24 Ⅱ

MEGMEET Din-rail Power Supply ：NLD-75-12 Ⅱ，NLD-75-24 Ⅱ，75W 12V 24V

Din-rail Power Supply导轨开关电源
NLDII75W Series
Application fields: industrial control, semiconductors, new energy, etc.
Main features:
● Input Voltage: 90 - 264Vac / 127 - 370Vdc ● High efficiency, high reliability, high performance ● Compliant with standards such as IEC/EN/UL62368
● Operating temperature: -30℃ to 70℃ ● Comprehensive protection functions: overcurrent/overvoltage/short circuit/over-temperature ● Enhance the conformal coating
● Internationally standard 35mm guide rail installation ● Natural air cooling ● Constant current overload protection
Model参数	NLD-75-12 Ⅱ	NLD-75-24 Ⅱ
Input Voltage 输入电压	90-264Vac/127-370Vdc
Frequency 频率范围	(50-60Hz)±5%
Working humidity 效率	86%	88%
Surge 浪涌电流	<35A@230Vac,25℃冷启动
保护功能	过流/过压/短路/过温
Over current 过流点	105%-130%
Working temperature 工作温度	-30℃-70℃(-40℃可启机)
Output Voltage 输出电压	12V	24V
Voltage adjustable 电压可调范围	12-14V	24-28V
Electric current 输出电流	6.30A	3.20A
EMI	满足EN55032 Class B;IEC/EN61000-3-2 Class A;IEC/EN 61000-3-3
EMS	满足IEC/EN 61000-4-2,3,4,5,6,8,11
Standard 安规	满足IEC/EN/UL62368、IEC/EN/UL61010
Mechanical dimensions 尺寸	32×125×106mm
Certifications 认证情况	BSMI/CB/CE/FCC/KC/RCM/UKCA/UL

导轨电源
NLDII75W系列
应用领域：工业控制、半导体、新能源等
主要特点：
●输入电压：90-264Vac/127-370Vdc ●高效率，高可靠，高性能 ●满足IEC/EN/UL62368等标准
●工作温度：-30℃-70℃ ●齐全保护功能：过流/过压/短路/过温 ●加强三防漆
●国际通用35mm导轨安装 ●自然风冷 ●恒流式过载保护
参数	NLD-75-12 Ⅱ	NLD-75-24 Ⅱ
输入电压	90-264Vac/127-370Vdc
频率范围	(50-60Hz)±5%
效率	86%	88%
浪涌电流	<35A@230Vac,25℃冷启动
保护功能	过流/过压/短路/过温
过流点	105%-130%
工作温度	-30℃-70℃(-40℃可启机)
输出电压	12V	24V
电压可调范围	12-14V	24-28V
输出电流	6.30A	3.20A
EMI	满足EN55032 Class B;IEC/EN61000-3-2 Class A;IEC/EN 61000-3-3
EMS	满足IEC/EN 61000-4-2,3,4,5,6,8,11
安规	满足IEC/EN/UL62368、IEC/EN/UL61010
尺寸	32×125×106mm
认证情况	BSMI/CB/CE/FCC/KC/RCM/UKCA/UL
